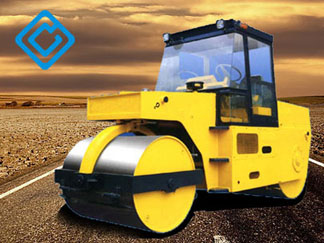

GMC-DD10 china road roller is an articulated static vibratory road roller.
These static rollers are general compaction equipments for highway, municipal road, parking area and industry ground etc, which is suitable for asphalt compaction, soil compaction, sand stone mixtures and dry cement compaction.
The driving wheel is of frame model, with low center of gravity and good stability. The front part of the system is narrow, with good view of steering; Dual chairs, dual steering wheels and good side compacting effect. The system is provided with a water spraying device, and the front and the rear wheels are evenly sprayed. Hydraulic controlled power steering.
Hydraulic break system.
We are specialized in producing high quality static roller, china road roller, with best price and good service! Welcome to order!
Data of GMC-DD10 Double Drum Road Compactor
Weight
Operating weight (with driver's cab) 8000－10000 kg
Front wheel linear load 230－310 N/cm
Rear wheel linear load 410－500 N/cm
Transmission system
1st Gear (F/R) 2 km/h
2nd Gear (F/R) 4 km/h
3rd gear 7.0 km/h
Grade ability 20%
Machine dimensions
Length× Width× Height 4500×1580×2660 mm
Front wheel width× Front wheel diameter 1270×φ1020 mm
Rear wheel width× Rear wheel diameter 1270×φ1320 mm
Machine parameters
Inside turning radius 5230 mm
Outside turning radius 6500 mm
Steering angle 36°
Ground clearance 320 mm
Axle base 3150 mm
Refilling capacities
Fuel tank capacity 100 L
Hydraulic fuel tank capacity 50 L
Diesel Engine
Model 495AY
