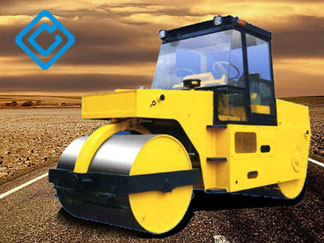

GMC-DD09 Double Drum Road Roller



GMC-DD09 self propelled road roller model is an articulated tandem vibratory road roller.Double Drum Road Roller


These diesel road rollers are general compaction equipments for highway, municipal road, parking area and industry ground etc, which is suitable for asphalt compaction, soil compaction, sand stone mixtures and dry cement compaction.


The driving wheel is of frame model, with low center of gravity and good stability. The front part of the system is narrow, with good view of steering; Dual chairs, dual steering wheels and good side compacting effect. The system is provided with a water spraying device, and the front and the rear wheels are evenly sprayed. Hydraulic controlled power steering.


Hydrostatic break system.



We are specialized in producing high quality road roller model, diesel road rollers, compaction equipment with best price and good service! Welcome to order!




Data of GMC-DD09 Double Drum Road Compactor



Diesel Engine
Model 495AY
Rated power/rotational speed 36.75 kW @ 2000 r/min



Weight
Operating weight (with driver's cab) 6000-8000 kg
Front wheel linear load 177-273 N/cm
Rear wheel linear load 295-410 N/cm

Transmission system
1st Speed (F/R) 2 km/h
2nd Speed (F/R) 4 km/h
3rd gear 7.0 km/h
Grade ability 20%

Machine parameters
Inside turning radius 5230 mm
Outside turning radius 6500 mm
Steering angle 36°
Ground clearance 320 mm
Wheel base 3150 mm



Machine dimensions
Length× Width× Height:  4500×1580×2660 mm
Front wheel width× Front wheel diameter 1270×φ1020 mm
Rear wheel width× Rear wheel diameter 1270×φ1320 mm



Refilling capacities
Fuel tank capacity 100 L

Hydraulic oil tank capacity 50 L
