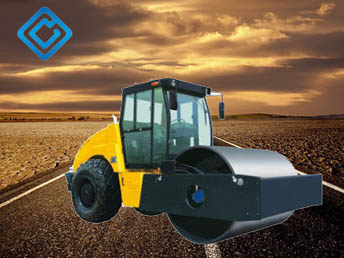

GMC-SDL220B、GMC- SDL 218B、GMC- SDL 216B、GMC- SDL214、GMC- SDL212、GMC- SDL 210 single drum vibratory rollers effect powerful centrifugal force and great static linear load. They are suitable for non-cohesive materials, such as sandy soil, gravel, crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbors, railways and industrial areas etc.
The GMC-SDL series single drum vibratory rollers can be divided into 10 ton road roller, 12 ton road roller, 14 ton road roller, and 16-20 ton road roller.
Main Features of Single Drum Vibratory Rollers
1 Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/ price ratio and reliable performance.
2 Reliable D6114 or YC6108 diesel engine for convenient operation and maintenance.
3 Two sets of brake devices, a hand brake and foot pedal brake, assure the machine's safety and dependability.
4 Spacious and comfortable cab mounted on top quality rubber damping elements.
5 World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.
Main Technical Parameters of Vibratory Road Compactor
Model |
GMC-SDL210 |
GMC-SDL212 |
GMC-SDL214 |
GMC-SDL216B |
GMC-SDL218B |
GMC-SDL220B |
Operating mass ton |
10 |
12 |
14 |
16 |
18 |
20 |
Static linear load N/cm |
230 |
276 |
342 |
378 |
415 |
450 |
Vibration frequency mm |
0.9 |
1.8 |
1.8/0.9 |
2.0/1.0 |
1.0 |
2.0 |
Centrifugal force KN |
240/130 |
270/140 |
200/150 |
320/180 |
340/200 |
360/220 |
1st gear |
1.8 |
1.8 |
2.0 |
2.0 |
2.0 |
2.0 |
2nd gear |
3.7 |
3.7 |
4.0 |
4.0 |
4.0 |
4.0 |
Grade ability % |
35 |
35 |
35 |
35 |
35 |
35 |
3rd gear |
9.7 |
9.7 |
10.5 |
10.5 |
10.5 |
10.5 |
Turning angle |
35 |
35 |
35 |
35 |
35 |
35 |
Ground clearance mm |
360 |
360 |
432 |
432 |
432 |
432 |
Bectrical voltage v |
24 |
24 |
24 |
24 |
24 |
24 |
Turning radius mm |
6500 |
7000 |
7000 |
7500 |
7500 |
7500 |
Vertical oscillation |
8 |
8 |
8 |
8 |
8 |
8 |
Type size |
17.5-25 |
17.5-25 |
23.1-26 |
23.1-26 |
23.1-26 |
23.1-26 |
Overall length mm |
5640 |
5640 |
5820 |
5820 |
5820 |
5820 |
Overall width mm |
2258 |
2258 |
2278 |
2278 |
2280 |
2280 |
Overall height mm |
2970 |
2970 |
3000 |
3000 |
3000 |
3000 |
Vibration round width mm |
2100 |
2100 |
2100 |
2100 |
2100 |
2100 |
Drum diameter mm |
1400 |
1400 |
1600 |
1600 |
1600 |
1600 |
Drum rim thickness mm |
24 |
24 |
24 |
32 |
40 |
46 |
Wheelbase mm |
3080 |
3080 |
3160 |
3160 |
3160 |
3160 |
Diesel model |
YC6108G |
YC6108G |
YC6108G |
YC6108ZG |
D6114ZGB |
D6114ZG6B |
Diesel power kW |
85 |
85 |
85 |
105 |
132 |
132 |
Diesel speed r/min |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
Fuel tank capacity L |
180 |
180 |
180 |
180 |
180 |
180 |
Hydraulic tank capacity L |
150 |
150 |
150 |
150 |
150 |
150 |
Vibration amplitude Hz |
30 |
30 |
30 |
30 |
30 |
30 |
Main Technical Parameters of Single Drum Vibratory Rollers
|
GMC- SDL 220H |
GMC- SDL 218H |
GMC- SDL 216H |
GMC- SDL 214H |
Operating mass Kg |
20000/16000 |
20000/16000 |
16000/14000 |
16000/14000 |
Static linear load N/cm |
460/415 |
460/415 |
378/342 |
378/342 |
Vibration amplitude） mm |
2.0/1.0 |
2.0/1.0 |
2.0/1.1 |
1.8/0.9 |
Vibration frequency Hz |
28/35 |
28/35 |
28/35 |
29/35 |
Centrifugal force KN |
360&220 |
340&200 |
320&180 |
290&160 |
Travel speed km/h |
11 |
11 |
11/12 |
11/12 |
Grade ability % |
30 |
30 |
30 |
30 |
Turning radius mm |
6500 |
6500 |
6500 |
6500 |
Overall dimension mm |
5930x2300x3020 |
5930x2300x3020 |
5860x2280x3020 |
5860x2280x3020 |
Vibration round width mm |
2100 |
2100 |
2100 |
2100 |
Wheelbase mm |
3160 |
3160 |
3160 |
3160 |
Ground clearance mm |
472 |
472 |
472 |
472 |
Diesel power kW |
132 |
132 |
110/73.5 |
110/73.5 |
Diesel model |
6BTA5.9 |
6BTA5.9 |
Cummins6BT5.9/ |
Cummins6BTA5.9/ |
